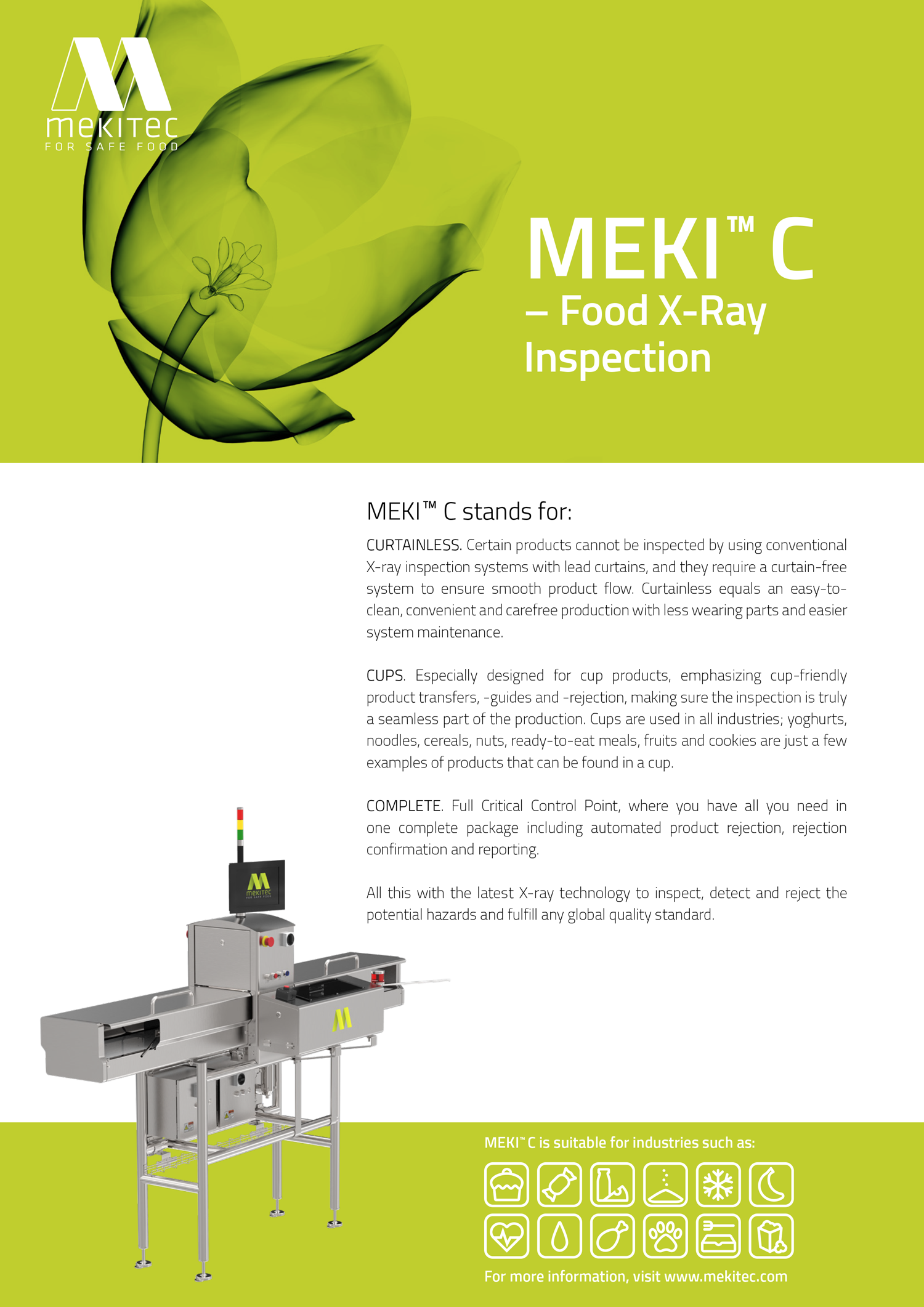

MEKI C Curtain-Free X-Ray Inspection
MEKI C Curtain-Free X-Ray Inspection
Conventional x-ray tunnels use lead curtains at the entry and exit to contain radiation. For tall, light or unstable packs those curtains are a problem: they tip cups, mark lids and snag product. MEKI C is the curtain-free answer, giving unobstructed product flow through the tunnel.
Built for Cup-Format and Unstable Packs
- Yoghurt and dessert cups
- Cereal and snack cups
- Ready meals and pot-format product
- Any lightweight pack that a curtain would knock over or scuff
Practical Advantages
No curtains means fewer wearing parts to replace, one less item on the cleaning schedule, and no curtain-related product damage or line stoppages. Air rejection is integrated.

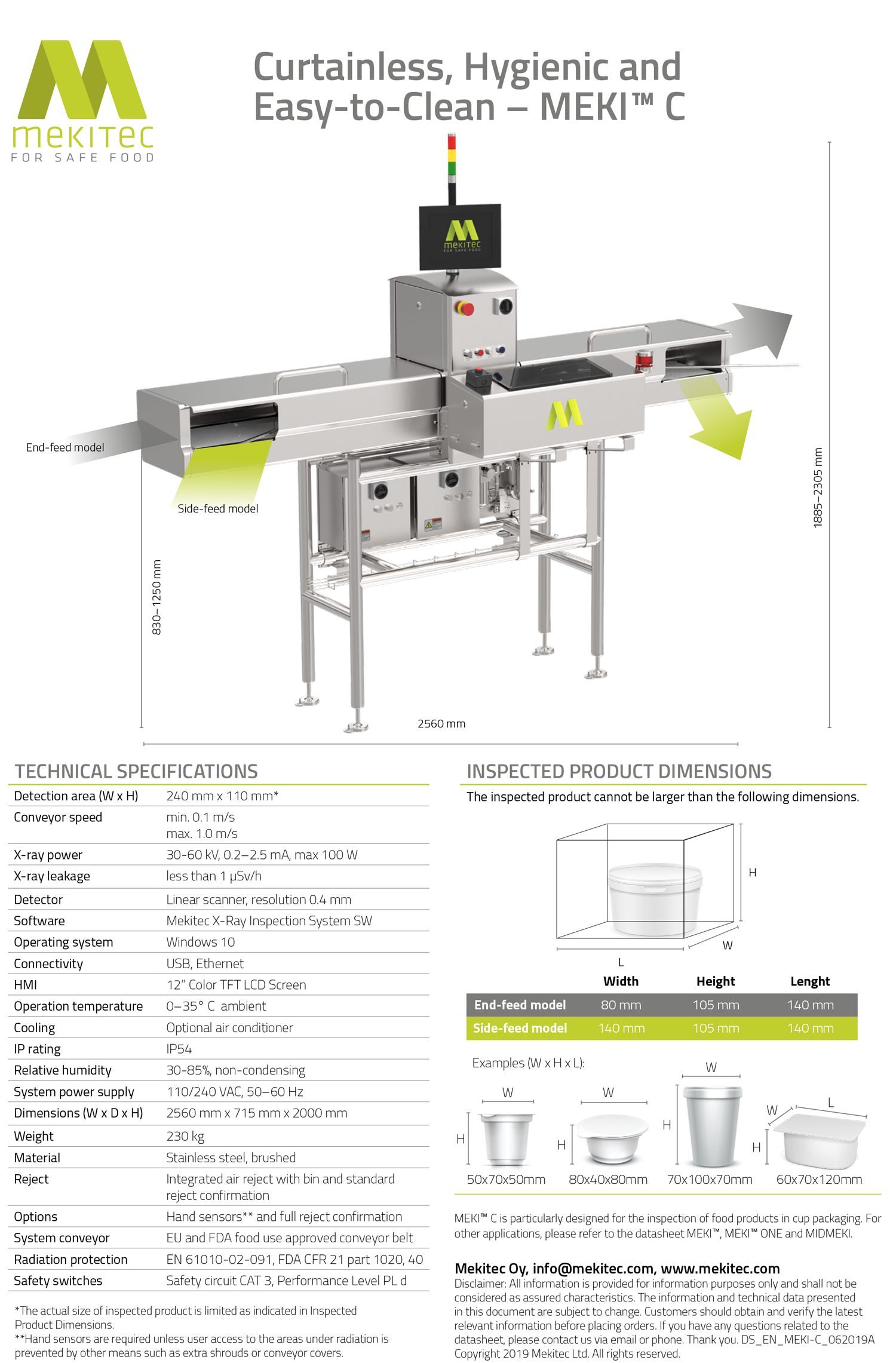

Published Specification
Detection area 240 x 110 mm. Conveyor speed 0.1 to 1.0 m/s. X-ray generator 30 to 60 kV, 0.2 to 2.5 mA, maximum 100 W. Linear detector 0.4 mm. IP54. Overall width approximately 2560 mm, depth 715 mm, height 2000 mm. Weight approximately 230 kg. Stainless steel, 0 to 35 degrees C ambient. Specification is from distributor documentation and should be confirmed with us before order.
Compare the X-Ray Range
Other models: MEKI (most compact, small primary packs), MEKI ONE (all-in-one with rejector and lockable bin), MEKI C (curtain-free, for cups and unstable packs), MIDMEKI (medium products and trays) and SIDEMEKI (side-shooting, for bottles and cans).
X-Ray or Metal Detection?
If metal is the only contaminant you need to catch and your packaging is not metallised, a metal detector is usually the cheaper answer. X-ray earns its cost when you also need glass, stone, bone or dense plastic detection, when packs are foil or metallised, or when you want fill level, mass and count checks in the same pass.
Installation and Line Integration
We integrate inspection equipment into new and existing lines across Malaysia: infeed and outfeed transfer under conveyor systems, positioning and tie-in under equipment installation, reject logic and reporting under automation and controls, and servicing under maintenance and repair. Browse all products or request a quotation or site visit.
